Kubota L175 tractor specs and service data

The Kubota L175 is a sub-compact utility tractor model from the L-series, manufactured from 1973 to 1976 by Kubota in Japan. It was available in two-wheel drive (2WD) version.

The Kubota L175 is equipped with a 743 cc (45.3 cu·in) two-cylinder diesel engine with 76.0 mm (2.99 in) of the cylinder bore and 82.0 mm (3.23 in) of the piston stroke, and a gear type transmission with 8 forward and 2 reverse gears.

The Kubota L175 sub-compact utility tractor features:

The Kubota Z750-A diesel engine which produces 17.3 PS (12.7 kW; 17.0 HP) at 2,800 rpm of horsepower
Manual steering
Open operator station
Category I rear hitch with 612 kg (1,350 lbs) of maximum lift capacity
Independent front PTO with 2800 rpm and electro-magnetic clutch
Rear PTO with 540 rpm

General specifications

General Specifications
Model	Kubota L175
Tractor type	Sub-compact utility tractor
Production years	1973-1976
Factory	Japan
Dimensions and weight
Length	2,400 mm (94.5 in)
Width	1,200 mm (47.2 in)
Height (steering wheel)	1,290 mm (50.8 in)
Wheelbase	1,490 mm (58.7 in)
Ground clearance	330 mm (13 in)
Weight	648 kg (1,429 lbs)
Fuel capacity
Fuel tank capacity	22.7 liters (6 US gal.; 5 Imp. gal)

Engine

Engine
Engine model	Kubota Z750A
Engine type	4-stroke, vertical, two-cylinders
Displacement	743 cm³, (45.3 cu·in)
Cylinder bore:	76.0 mm (2.99 in)
Piston stroke:	82.0 mm (3.23 in)
Compression ratio:	21.0:1
Max. horsepower	17.3 PS (12.7 kW; 17.0 HP) at 2,800 rpm
Max. torque	–
Cooling system	Liquid-cooled
Lubricating system	Forced lubrication by pump
Combustion chamber	–
Fuel system	Fuel injection pump
Injection type	Indirect injection
Fuel used	Diesel fuel No.2-D
Starting system	Electric starter
Governor	Centrifugal ball mechanical governor
PTO shaft rotation	Counterclockwise (from PTO shaft side)
Valve clearance
Intake valve clearance:	0.18-0.22 mm (0.0071-0.0087 in)
Exhaust valve clearance:	0.18-0.22 mm (0.0071-0.0087 in)
Oil system
Lubrication system:	Forced lubrication
Oil type:	DS or DM
Recommended oil:	SAE 80
Oil capacity:	3.5 L (3.7 US. qt, 3.08 Imp. qt.)
Fuel system
Injection timing:	25° B.T.D.C.
Fuel injection pressure	13.73-14.71 MPa (140-150 kgf/cm2, 1991-2133 psi)
Cooling system
Type:	Pressurized radiator, forced circulation with water pump
Coolant capacity:	5.3 liters (5.6 US.qts, 4.7 Imp. qts)

Transmission and chassis

Chassis, steering and brakes
Chassis	4×2 2WD
Steering type	Manual
Brakes	Shoe-type
Differential lock	Mechanical rear (optional)
Transmission
Transmission manufacturer or model	–
Transmission type	Gear type
Gears	8 forward and 2 reverse
Transmission oil capacity	22.0 L (5.8 US. gal, 4.8 Imp. gal.)

Tires

Tires
Front tires	Ag: 4.00-12 Lawn/turf: 20×8.00-10
Rear tires	Ag: 8.3-24 Lawn/turf: 13.6-16

Rear Hitch

Three-Point Hitch
Category	I
Control type	–
Lift capacity (at ends)	612 kg (1,350 lbs)

PTO (Power take-off shaft)

PTO
Front PTO type	Independent with electro-magnetic clutch
Front PTO speed	2800 rpm
Rear PTO type	–
Rear PTO speed	540 rpm

Electrical system

Electrical system
Ground	Negative
Charging system	Alternator (Nippon-Denso)
Charging amps	10A
Battery	12V, 65Ah

Hydraulic system

Hydraulic system
Hydraulic type	–
Pressure	1700 psi (117.2 bar)
Valves	1
Total flow	3.7 gpm (14 lpm)

Attachments

Kubota 703 loader
Height (to pin)	2,250 mm (88.7 in)
Clearance, dumped bucket	1,760 mm (69.5 in)
Dump reach	680 mm (27.0 in)
Dump angle	36°
Rollback angle	18°
Lift to full height (at pin)	362 kg (800 lbs)
Bucket width	1,210 mm (48 in) 1,520 mm (60 in)
Raise time to height	5.0 s
Lowering time	4.0 s
Kubota K605 backhoe

Author: Sergei Wers
About: Co-founder and CEO of a multi-brand auto repair shop (engine repair, chassis repair, body repair and painting) for over 15 years. I have been developing internet sites with technical specifications for more than seven years.

ATTENTION! Dear visitors, this is an informational database of technical specifications, we are not a parts supplier or a marketplace.

We try to use official documentation and verify the published data, but errors may occur. In addition, specifications of machinery and equipment may vary depending on markets and modifications. We do not recommend the use of this data for spare parts or repairs. Use official service manuals or parts catalogs for your product.

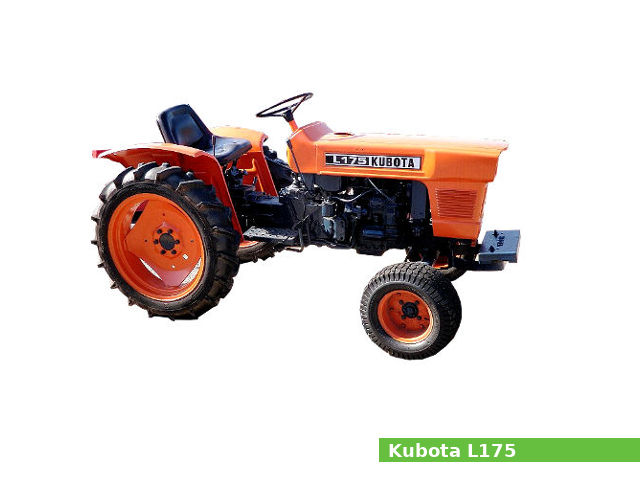

Kubota L175
