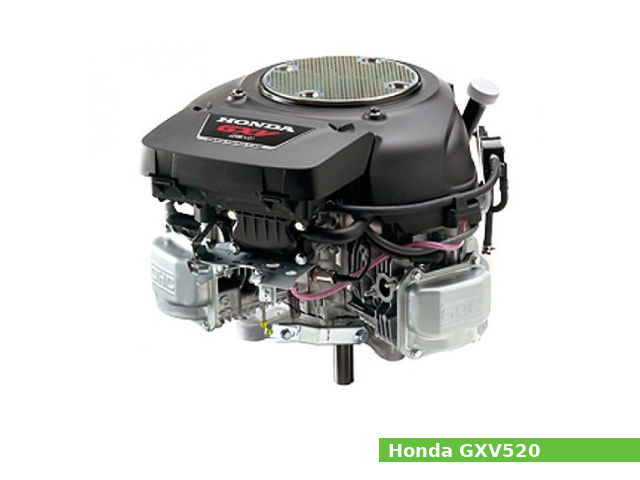

The Honda GXV520 is a 530 cc, (32.34 cu·in) natural aspirated V-twin four-stroke air-cooled internal combustion gasoline engine with a vertical shaft, manufactured by Honda Motor Company for general-purpose applications.
A 77.0 mm (3.03 in) cylinder bore and 57.0 mm (2.24 in) piston stroke give the GXV520 engine a total of 530 cc of displacement. The compression ratio rating is 8.0:1.
The GXV520 engine produced 13.3 PS (9.8 kW; 13.1 HP) at 3,600 rpm of maximum horsepower and 32.9 N·m (3.4 kg·m, 24.2 ft·lb) at 2,500 rpm of maximum torque.
The Honda GXV520 features:
- Overhead valve (OHV) design
- Transistorized magneto ignition system
- Horizontal type, two barrels, butterfly valve
- Centrifugal governor
- Splash lubrication system
- Forced air cooling system
- Electric starter
General information
| Engine Specifications | |
| Engine model | GXV520 |
| Engine type | 4-stroke, OHV, V-twin |
| Displacement | 530 cm3, (32.34 cu·in) |
| Max. horsepower | 13.3 PS (9.8 kW; 13.0 HP) at 3,600 rpm |
| Max. torque | 32.9 N·m (3.4 kg·m, 24.2 ft·lb) at 2,500 rpm |
| Cooling system | Forced air |
| Air cleaner | – |
| Lubricating system | Splash |
| Ignition system | Transistorized magneto ignition |
| Fuel system | Horizontal type, two barrels, butterfly valve |
| Fuel consumption | 230 g/HPh |
| Fuel tank capacity | – |
| Fuel used | Unleaded gasoline (octane number 86 or higher) |
| Starting system | Electric starter |
| Stoping system | Ignition primary circuit ground |
| Governor | Centrifugal governor |
| PTO shaft rotation | Counterclockwise (from PTO shaft side) |
| Dimensions (L x W X H) | – |
| Dry weight | – |
Cylinder Block and Head
| Cylinder block | |
| Compression ratio: | 8.0:1 |
| Cylinder bore: | 77.0 mm (3.03 in) |
| Piston stroke: | 57.0 mm (2.24 in) |
| Cylinder internal diameter (standard): | 77.000 mm (3.0315 in) |
| Piston skirt outer diameter (standard): | 76.985 mm (3.0309 in) |
| Number of piston rings (compression / oil): | 2/1 |
| Connecting rod big end diameter (standard): | 35.025 mm (1.3789 in) |
| Connecting rod small end diameter (standard): | 18.005 mm (0.7089 in) |
| Side clearance (Top): | 0.050-0.080 mm (0.002-0.0031 in) |
| Side clearance (Second): | 0.030-0.080 mm (0.0012-0.0031 in) |
| Ring end gap (Top): | 0.200-0.400 mm (0.0079-0.0157 in) |
| Ring end gap (Second): | 0.200-0.400 mm (0.0079-0.0157 in) |
| Ring width (Top): | 1.990 mm (0.0783 in) |
| Ring width (Second): | 1.990 mm (0.0783 in) |
| Crankshaft main journal diameter (PTO side): | 30.993 mm (1.2202 in) |
| Crankshaft main journal diameter (Flywheel side): | 34.993 mm (1.3777 in) |
| Crankpin journal diameter: | 34.985 mm (1.3774 in) |
| Cylinder head | |
| Valve arrangement: | OHV, gear driven |
| Valves: | 2,(4 valves in total) |
| Valve steam diameter (INTAKE): | 5.485 mm (0.2159 in) |
| Valve steam diameter (EXHAUST): | 5.440 mm (0.2142 in) |
| Valve spring free length (INTAKE): | 34.0 mm (1.3386 in) |
| Valve spring free length (EXHAUST): | 34.0 mm (1.3386 in) |
| Camshaft lobe height (INTAKE): | 40.251 mm (1.5847 in) |
| Camshaft lobe height (EXHAUST): | 40.251 mm (1.5847 in) |
Tightening torque specs
| Tightening torque specs | |
| Cylinder nut | 32 Nm; 3.3 kg·m; 24 ft·lb |
| Connecting rod bolt | 12 Nm; 1.2 kg·m; 8.6 ft·lb |
| Oil drain bolt | 44 Nm; 4.5 kg·m; 33 ft·lb |
| Oil filter holder | 18 Nm; 1.8 kg·m; 13 ft·lb |
| Oil filter | 12 Nm; 1.2 kg·m; 8.6 ft·lb |
| Valve adjusting lock nut | 7.5 Nm; 0.75 kg·m; 5.4 ft·lb |
| Governor fork screw | 5.5 Nm; 0.55 kg·m; 4.0 ft·lb |
| Flywheel bolt | 157 Nm; 16.0 kg·m; 116 ft·lb |
| Ignition coil stud bolt | 12 Nm; 1.2 kg·m; 8.6 ft·lb |
| Fuel pump screw | 3 Nm; 0.3 kg·m; 2.2 ft·lb |
| Breather valve bolt | 5.5 Nm; 0.55 kg·m; 4.0 ft·lb |
| Oil pan bolt | 24 Nm; 2.4 kg·m; 17 ft·lb |
| Starter solenoid nut | 12 Nm; 1.2 kg·m; 8.6 ft·lb |
| Starter solenoid terminal nut | 9 Nm; 0.9 kg·m; 6.5 ft·lb |
| Through bolt | 7 Nm; 0.7 kg·m; 5.1 ft·lb |
| Fuel drain screw | 4 Nm; 0.4 kg·m; 2.9 ft·lb |
| Air vent cover screw | 2 Nm; 0.2 kg·m; 1.4 ft·lb |
| Others | |
| 5 mm bolts, nuts | 5.5 Nm; 0.55 kg·m; 4.0 ft·lb |
| 6 mm bolts, nuts | 10 Nm; 1.0 kg·m; 7 ft·lb |
| 8 mm bolts, nuts | 24 Nm; 2.4 kg·m; 17 ft·lb |
| 10 mm bolts, nuts | 37 Nm; 3.7 kg·m; 27 ft·lb |
| 12 mm bolts, nuts | 55 Nm; 5.5 kg·m; 39.5 ft·lb |
Service Data
| Engine | |
| Maximum speed: | 3,000 ± 150 rpm |
| Idle speed: | 1,400 ± 150 rpm |
| Cylinder compression: | 6.0-8.0 kg/cm2 (85-114 psi) at 600 rpm |
| Valve clearance | |
| Intake valve clearance: | 0.10 ± 0.04 mm (0.004 ± 0.002 in) |
| Exhaust valve clearance: | 0.15 ± 0.04 mm (0.006 ± 0.002 in) |
| Oil system | |
| Lubrication system: | Splash |
| Oil type: | Honda 4-stroke or an equivalent (SE or SF) |
| Recommended oil: | SAE 10W-30 |
| Oil capacity: | 1.0 L (1.06 US. qt, 0.88 Imp. qt.) |
| Fuel system | |
| Type: | Horizontal type, two barrels, butterfly valve |
| Ignition system | |
| Type: | Transistorized magneto ignition |
| Ignition timing: | 20° B.T.D.C. |
| Spark plug: | NGK: BPR5ES DENSO: W16EPR-U |
| Spark plug gap: | 0.7-0.8 mm (0.0276-0.0315 in) |
| Ignition coil air gap | 0.2-0.6 mm (0.0079-0.0236 in) |
