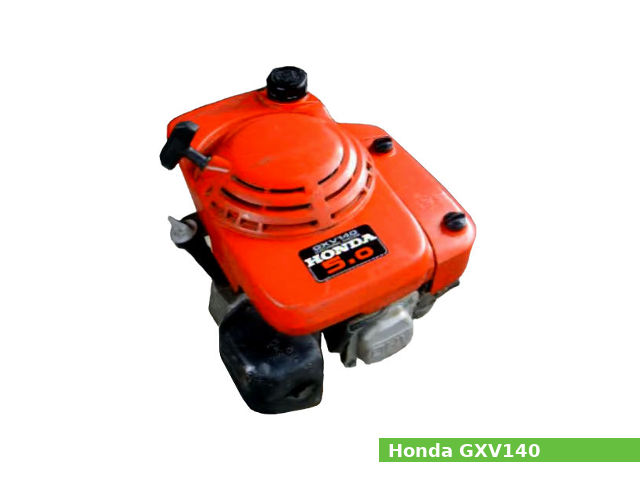

The Honda GXV140 is an 135 cc, (8.24 cu·in) natural aspirated single-cylinder four-stroke air-cooled internal combustion gasoline engine with a vertical shaft, manufactured by Honda Motor Company for general-purpose applications.
Cylinder bore and piston stroke are 64.0 mm (2.52 in) and 42.0 mm (1.65 in), respectively. Compression ratio rating is 8.0:1.
This engine produced 5.0 PS (3.7 kW; 5.0 HP) at 3,600 rpm of horsepower and 10.3 N·m (1.1 kg·m, 7.6 ft·lb) at 2,700 rpm of torque.
The Honda GXV140 features:
- Overhead valve (OHV) design
- C.D.I.(Capacitor Discharge Ignition)
- Horizontal type carburetor with butterfly valve
- Centrifugal governor
- Splash lubrication system
- Forced air cooling system
- Recoil starter
General information
| Engine Specifications | |
| Engine model | GXV140 |
| Engine type | 4-stroke, OHV, single-cylinder |
| Displacement | 135 cm3, (8.24 cu·in) |
| Max. horsepower | 5.0 PS (3.7 kW; 5.0 HP) at 3,600 rpm |
| Max. torque | 10.3 N·m (1.1 kg·m, 7.6 ft·lb) at 2,700 rpm |
| Cooling system | Forced air |
| Lubricating system | Splash |
| Ignition system | C.D.I.(Capacitor Discharge Ignition) |
| Fuel system | Horizontal type carburetor with butterfly valve |
| Fuel consumption | 250 g/HPh |
| Fuel tank capacity | 1.0 L (0.26 US. gal. 0.22 Imp. gal.) |
| Fuel used | Unleaded gasoline (octane number 86 or higher) |
| Starting system | Recoil starter |
| Stoping system | Ignition primary circuit ground |
| Governor | Centrifugal governor |
| PTO shaft rotation | Counterclockwise (from PTO shaft side) |
| Dimensions (L x W X H) | – |
| Dry weight | – |
Cylinder Block and Head
| Cylinder block | |
| Compression ratio: | 8.0:1 |
| Cylinder bore: | 64.0 mm (2.52 in) |
| Piston stroke: | 42.0 mm (1.65 in) |
| Cylinder internal diameter (standard): | 64.000 mm (2.5197 in) |
| Piston skirt outer diameter (standard): | 63.985 mm (2.5191 in) |
| Number of piston rings (compression / oil): | 2/1 |
| Connecting rod big end diameter (standard): | 26.020 mm (1.0244 in) |
| Connecting rod small end diameter (standard): | 13.005 mm (0.512 in) |
| Piston pin diameter: | 13.000 mm (0.5118 in) |
| Side clearance (Top): | 0.015-0.045 mm (0.0006-0.0018 in) |
| Side clearance (Second): | 0.015-0.045 mm (0.0006-0.0018 in) |
| Ring end gap (Top): | 0.200-0.400 mm (0.0079-0.0157 in) |
| Ring end gap (Second): | 0.200-0.400 mm (0.0079-0.0157 in) |
| Ring width (Top): | 1.500 mm (0.0591 in) |
| Ring width (Second): | 1.500 mm (0.0591 in) |
| Crankpin journal diameter: | 25.980 mm (1.0228 in) |
| Cylinder head | |
| Valve arrangement: | OHV, gear driven |
| Valves: | 2 |
| Valve steam diameter (INTAKE): | 5.480 mm (0.2157 in) |
| Valve steam diameter (EXHAUST): | 5.440 mm (0.2142 in) |
| Valve spring free length (INTAKE): | 30.500 mm (1.2008 in) |
| Valve spring free length (EXHAUST): | 30.500 mm (1.2008 in) |
| Camshaft lobe height (INTAKE): | 27.700 mm (1.0905 in) |
| Camshaft lobe height (EXHAUST): | 27.750 mm (1.0925 in) |
| Camshaft journal diameter : | 13.984 mm (0.5506 in) |
Tightening torque specs
| Tightening torque specs | |
| Connecting rod lower cap | 12 Nm; 1.2 kg·m; 9 ft·lb |
| Cylinder head bolt | 24 Nm; 2.4 kg·m; 17 ft·lb |
| Flywheel nut | 52 Nm; 5.2 kg·m; 38 ft·lb |
| Pivot adjusting nut | 10 Nm; 1.0 kg·m; 7 ft·lb |
| Pivot bolt | 24 Nm; 2.4 kg·m; 17 ft·lb |
| Oil drain bolt | 18 Nm; 1.8 kg·m; 13 ft·lb |
| Oil pan bolt | 12 Nm; 1.2 kg·m; 9 ft·lb |
| Standard torque values | |
| Bolt, nut (5 mm) | 5.5 Nm; 0.55 kg·m; 4.0 ft·lb |
| Bolt, nut (6 mm) | 10 Nm; 1.0 kg·m; 7 ft·lb |
| Bolt, nut (8 mm) | 24 Nm; 2.4 kg·m; 17 ft·lb |
| Bolt, nut (10 mm) | 37.5 Nm; 3.75 kg·m; 27 ft·lb |
| Bolt, nut (12 mm) | 55 Nm; 5.5 kg·m; 40 ft·lb |
Service Data
| Engine | |
| Maximum speed: | 3,100 ± 100 rpm |
| Idle speed: | 2,100 ± 150 rpm |
| Cylinder compression: | 6.0-8.5 kg/cm2 at 600 rpm |
| Valve clearance | |
| Intake valve clearance: | 0.15±0.02 mm (0.006±0.001 in) |
| Exhaust valve clearance: | 0.20±0.02 mm (0.008±0.001 in) |
| Oil system | |
| Lubrication system: | Splash |
| Oil type: | Honda 4-stroke or an equivalent (SE or SF) |
| Recommended oil: | SAE 10W-30 |
| Oil capacity: | 0.6 L (0.63 US. qt, 0.53 Imp. qt.) |
| Fuel system | |
| Type: | Horizontal type carburetor with butterfly valve |
| Main jet: | #60 |
| Float height: | 12.2-15.2 mm (0.48-0.60 in) |
| Pilot screw opening: | 1/2 turns out |
| Ignition system | |
| Type: | C.D.I.(Capacitor Discharge Ignition) |
| Ignition timing: | 25° B.T.D.C. |
| Spark plug: | NGK: BP5ES, BPR5ES NIPPONDENSO: W16EP-U, W16EPR-U |
| Spark plug gap: | 0.7-0.8 mm (0.0276-0.0315 in) |
