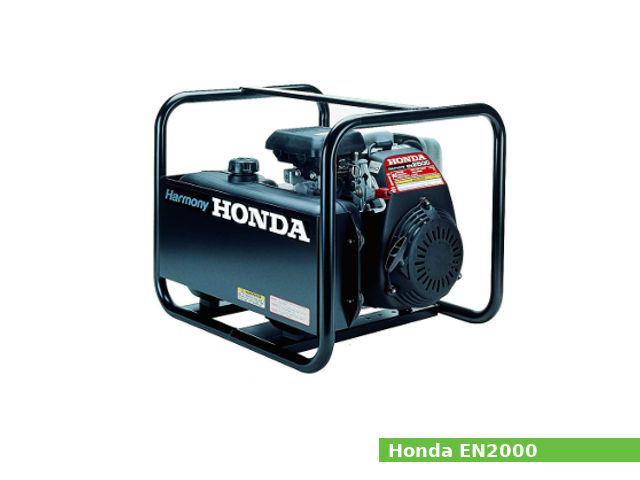

The Honda EN2000 is AC portable generator with 2.0 KVA of maximum power, 1.8 KVA of rated power and 60Hz of rated frequency. The EN2000 generator is available with AC 120V rated voltage.
The Honda EN2000 generator is equipped with the GC160 single-cylinder gasoline engine with 160 cm3, (9.8 cu·in) of displacement. The engine has an OHC (overhead camshaft) design, horizontal carburetor with butterfly valve, and transistorized magneto ignition system. A 64 mm (2.5 in) cylinder bore and 50 mm (2.0 in) piston stroke give the engine a total of 160 cc of displacement. The compression ratio is 8.5:1.
The engine produced 5.0 PS (3.7 KW; 5.0 HP) at 3,600 rpm of maximum horsepower and 10.3 N·m (1.05 kg·m, 7.6 ft·lb) at 2,500 rpm of torque.
General information
| Generator Specifications | ||
| Model | Honda EN2000 (EZFR) | |
| Dimensions (L x W x H): | 540 x 444 x 439 mm (21.3 x 17.5 x 17.3 in) | |
| Dry weight | A: 27.5 kg (60.6 lbs) AL: 30.5 kg (67.2 lbs) | |
| AC Rated voltage: | 120V | |
| AC Rated output: | 1.8 KVA | |
| AC Rated ampere: | 15.0A | |
| AC Maximum output: | 2.0 KVA | |
| Rated frequency: | 60 Hz | |
| Fuel tank capacity | A: 1.9 liters (0.5 US gal, 0.4 Imp. gal) AL: 11.0 liters (2.9 US gal, 2.4 Imp. gal) | |
| Engine | ||
| Model | Honda GC160 | |
| Displacement | 160 cm3 (9.8 cu-in) | |
| Bore x stroke | 64.0 x 50.0 mm (2.52 x 1.97 in) | |
| Max. horsepower | 5.0 PS (3.7 KW; 5.0 HP) at 3,600 rpm | |
| Max. torque | 10.3 N·m (1.05 kg·m, 7.6 ft·lb) at 2,500 rpm | |
| Carburetor | Horizontal type, butterfly valve | |
| Cooling system | Forced-air | |
| Ignition system | Flywheel magneto ignition | |
| Lubricating system | Splash | |
| Starting system | Recoil starter | |
| Stoping system | Ignition primary circuit ground | |
| Fuel used | Unleaded gasoline (octane number 86 or higher) | |
Maintenance data
| Engine | |
| Maximum speed: | 3,850±150 rpm |
| Idle speed: | 1,400±150 rpm |
| Valve clearance | |
| Intake valve clearance: | 0.15±0.04 mm (0.006±0.002 in) |
| Exhaust valve clearance: | 0.20±0.04 mm (0.008±0.002 in) |
| Oil system | |
| Lubrication system: | Splash |
| Oil type: | Honda 4-stroke or an equivalent (SE or SF) |
| Recommended oil: | SAE 10W-30 |
| Oil capacity: | 0.58 L (0.61 US. qt, 0.51 Imp. qt.) |
| Fuel system | |
| Type: | Horizontal type carburetor with butterfly valve |
| Main jet: | #65 |
| Float height: | 9.2 mm (0.3622 in) |
| Pilot screw opening: | 1-3/4 turns out |
| Ignition system | |
| Type: | Transistorized magneto ignition |
| Ignition timing: | 20° B.T.D.C. |
| Spark plug: | NGK BPR6ES |
| Spark plug gap: | 0.7-0.8 mm (0.0276-0.0315 in) |
| Spark plug torque: | 20 N·m (2 kg·m, 14.7 ft·lb) |
