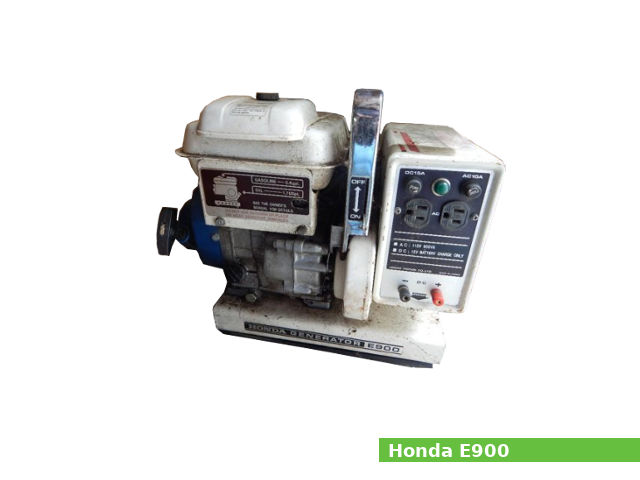

The Honda E900 is AC/DC, single phase, 4-pole portable generator with 900 VA of maximum power, 800 VA of rated power and 60Hz of rated frequency. The E900 generator is available with AC 115V and DC 12V rated voltage. The direct current terminals can be used for charging 12-volt automotive-type batteries 70 Ah and up.
The Honda E900 generator uses the G28EA single-cylinder gasoline engine with 68 cm3, (4.1 cu·in) of displacement. The engine has an overhead camshaft design, a flywheel magneto ignition system, and a splash-type oil system. The cylinder bore and the piston stroke are 49.0 mm (1.93 in) and 35.6 mm (1.40 in), respectively. The compression ratio rating is 8.3:1.
The engine produced 2.8 PS (2.08 KW; 2.8 HP) at 6,000 rpm of maximum horsepower and 2.0 PS (1.5 KW; 2.0 HP) at 5,000 rpm of rated power.
General information
| Generator Specifications | ||
| Model | Honda E900 | |
| Dimensions (L x W x H): | 450 x 370 x 415 mm (17.7 x 14.6 x 16.3 in) | |
| Dry weight | 39.0 kg (76.0 lbs) | |
| AC Rated voltage: | 115V | |
| AC Rated output: | 800 VA (6.7A) | |
| AC Maximum output: | 900 VA | |
| Rated frequency: | 60 Hz | |
| DC output: | Only for charging automotive battery of 12V – 70Ah and up | |
| Fuel tank capacity | 2.6 L (0.7 US gal, 0.6 Imp. gal) | |
| Engine | ||
| Model | Honda G28 | |
| Displacement | 68 cm3 (4.1 cu-in) | |
| Bore x stroke | 49.0 x 35.6 mm (1.93 x 1.40 in) | |
| Max. horsepower | 2.8 PS (2.08 KW; 2.8 HP) at 6,000 rpm | |
| Max. torque | – | |
| Fuel system | Carburetor | |
| Cooling system | Forced-air | |
| Ignition system | Flywheel magneto ignition | |
| Lubricating system | Splash | |
| Starting system | Recoil starter | |
| Stoping system | Ignition primary circuit ground | |
| Fuel used | Unleaded gasoline (octane number 86 or higher) | |
Maintenance data
| Oil system | |
| Oil type | Honda 4-stroke “SD” |
| Recommended oil | SAE 5W-40, 20W-50 |
| Oil capacity | 0.7 L (0.74 US.qts, 0.62 Imp. qts) |
| Ignition system | |
| Spark plug | NGK: C-6HB |
| Spark plug gap | 0.7 mm (0.028 in) |
