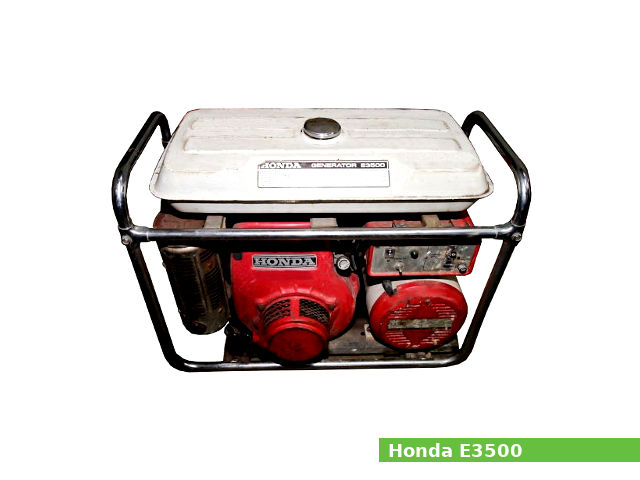

The Honda E3500 is AC/DC portable generator. The E3500 is equipped with two receptacles for alternating current 115V, 15A power, one receptacle for 115V, 30A, and one receptacle for 230V, 15.2A. The maximum power available at the receptacles is 3.5 kVA (3,500 watts). The generator is equipped with an AVR (Auto Voltage Regulator). The voltage need not be adjusted if the frequency is adjusted property.
The direct current terminals can be used for charging 12-volt automotive type batteries only.
The Honda E3500 generator uses a single-cylinder Honda G400 gasoline engine (406 cc; 24.8 cu.in.).The engine has a side-valve (L-head) design and camshaft driven by a single row chain driven by the crankshaft. The G400 uses a recoil starter, horizontal carburetor with a butterfly valve and flywheel magneto ignition system. The cylinder bore and the piston stroke are 86.0 mm (3.4 in) and 70.0 mm (2.8 in), respectively. The compression ratio rating is 6.5:1.
The G400 produced 10.0 HP (7.45 kW) at 3600 rpm of maximum horsepower and torque was 22.5 Nm (2.3 kg·m) at 3600 rpm.
General information
| Generator Specifications | |
| Model | Honda E3500 |
| Dimensions (L x W x H): | 717 x 415 x 595 mm (28.2 x 16.3 x 23.4 in) |
| Dry weight (without tines) | 84.0 kg (185 lbs) |
| AC Rated voltage: | 115V/230V |
| AC Rated output: | 2.8 KVA (2,800 watts), 24.3A/12.2A |
| AC Maximum output: | 3.5 KVA (3,500 watts), 30A/15.2A |
| AC Cycles: | 60 Hz |
| DC output: | Only fo charging 12V automotive batteries Maximum charging output – 8.3A |
| Fuel tank capacity | 14 L (3.7 Us Gal.) |
| Engine | |
| Engine model | Honda G400 |
| Displacement | 406 cm3 (24.8 cu-in) |
| Bore x stroke | 86.0 x 70.0 mm (3.39 x 2.76 in) |
| Max. horsepower | 10.0 HP (7.45 kW) at 3600 rpm |
| Max. torque | 22.5 Nm (2.3 kg·m) at 3600 rpm |
| Carburetor | Horizontal type, butterfly valve |
| Cooling system | Forced-air |
| Ignition system | Transistorized magneto ignition |
| Lubricating system | Splash |
| Starting system | Recoil starter |
| Stoping system | Ignition primary circuit ground |
| Fuel used | Unleaded gasoline (octane number 86 or higher) |
Maintenance data
| Engine | |
| Idle speed | 1,400 ± 150 rpm |
| Cylinder compression | 5.3 kg/cm2 (75 psi) |
| Adjust timing ignition | |
| Ignition timing | 20° B.T.D.C. |
| Adjust valve clearance | |
| Intake valve | 0.05-0.11 mm (0.0020-0.0043 in) |
| Exhaust valve | 0.09-0.15 mm (0.0035-0.0059 in) |
| Oil system | |
| Oil type | Honda 4-stroke “SE” |
| Recommended oil | 10W-40 |
| Oil capacity | 1.2 L (2.54 US pt.) |
| Carburetor | |
| Main jet | #102 |
| Float height | 8.6 mm (0.34 in) |
| Ignition system | |
| Spark plug | NGK: B4H, BR4HS |
| Spark plug gap | 0.6-0.7 mm (0.024-0.028 in) |
