Cub Cadet SLTX 1050 lawn tractor specs and service data

The Cub Cadet SLTX1050 is a lawn tractor model from the LTX1000 series, manufactured from 2009 to 2014 by Cub Cadet (a part of MTD). It was available in two-wheel drive (2WD) version.

The Cub Cadet SLTX 1050 is equipped with a 0.7 L (44.2 cu·in) two-cylinder gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke, and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet SLTX1050 lawn tractor features:

The Kohler Courage SV730 gasoline engine which produces 25.3 PS (18.6 kW; 25.0 HP) at 3,600 rpm of horsepower.
Manual sector and pinion steering
Open operator station
Independent front PTO with electric clutch

General specifications

General Specifications
Model	Cub Cadet SLTX1050
Tractor type	Lawn tractor
Production years	2009-2014
Factory	–
Dimensions and weight
Length	1,750 mm (68.9 in)
Width	–
Height	–
Wheel base	1,200 mm (47.2 in)
Weight	248 kg (547 lbs)
Fuel capacity
Fuel tank capacity	12.5 liters (3.3 US gal.; 2.7 Imp. gal)

Engine

Engine
Engine model	Kohler SV730
Engine type	Four-stroke, air-cooled, V-twin
Cylinders	2
Fuel type	Gasoline
Displacement	725 cm³, (44.2 cu·in)
Bore and stroke	83.0 mm X 67.0 mm (3.27 in X 2.64 in)
Compression ratio	9.0:1
Horsepower	25.3 PS (18.6 kW; 25.0 HP) at 3,600 rpm
Starter	Electric
Oil system
Lubrication system:	Full pressurized
Oil type:	API SJ or higher
Recommended oil:	SAE 10W-30
Oil capacity (with filter):	1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Ignition system
Spark plug:	Champion RC12YC
Spark plug gap:	0.76 mm (0.0299 in)
Spark plug torque:	27 N·m (2.8 kg·m, 19.9 ft·lb)
Valve clearance
Intake valve clearance:	0.101-0.152 mm (0.004-0.006 in)
Exhaust valve clearance:	0.101-0.152 mm (0.004-0.006 in)

Transmission and chassis

Chassis, steering and brakes
Chassis	4×2 2WD
Steering type	Manual sector and pinion
Brakes	–
Transmission
Transmission manufacturer or model	–
Transmission type	Hydrostatic
Gears	Infinite forward and reverse
Speed	Forward: 8.4 kmh (5.2 mph) Reverse: 3.7 kmh (2.3 mph)
Transmission oil capacity	1.9 L (0.5 US. gal, 0.4 Imp. gal.)

Tires

Tires
Front tires	Lawn/turf: 15×6.5×8
Rear tires	Lawn/turf: 22×9.5×12

PTO (Power take-off shaft)

PTO
Front PTO type	Independent with electric clutch
Front PTO speed	–

Electrical system

Electrical system
Ground	Negative
Charging system	Flywheel alternator
Charging amps	15A
Battery	12V, CCA 260A

Attachments

Cub Cadet 50″ mid-mount mower deck with manual lift
Cutting width	1,270 mm (50 in)
Cub Cadet 190-833: 46″ front-mount blade and manual lift
Width	1,160 mm (46 in)
Cub Cadet 190-032: 42″ front-mount two-stage snowblower with manual lift
Width	1,060 mm (42 in)

Author: Sergei Wers
About: Co-founder and CEO of a multi-brand auto repair shop (engine repair, chassis repair, body repair and painting) for over 15 years. I have been developing internet sites with technical specifications for more than seven years.

ATTENTION! Dear visitors, this is an informational database of technical specifications, we are not a parts supplier or a marketplace.

We try to use official documentation and verify the published data, but errors may occur. In addition, specifications of machinery and equipment may vary depending on markets and modifications. We do not recommend the use of this data for spare parts or repairs. Use official service manuals or parts catalogs for your product.

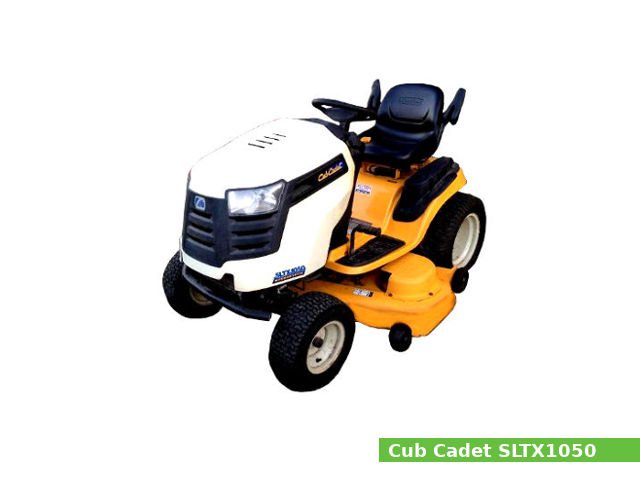

Cub Cadet SLTX1050
