Bolens 1886 Husky garden tractor specs and service data

The Bolens 1886 Husky is a garden tractor model from the Large Frame series, manufactured from 1971 to 1972 by Bolens. It was available in a two-wheel drive (2WD) version.

The Bolens 1886 is equipped with a 781 cc (47.8 cu·in) two-cylinder gasoline engine with 82.6 mm (3.25 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke, and a shaft-driven hydrostatic transmission with infinite forward and reverse gears.

The Bolens 1886 garden tractor features:

The Kohler K482S gasoline engine which produces 18.2 PS (13.4 kW; 18.0 HP) at 3,600 rpm of horsepower
Manual or power (optional) steering
Disc brakes
Open operator station
Category 0 rear hitch (optional)
Independent middle PTO

General specifications

General Specifications
Model	Bolens 1886 Husky
Tractor type	Garden tractor
Production years	1971-1972
Factory	–
Dimensions and weight
Length	1,930 mm (76 in)
Width	960 mm (37.8 in)
Height	1,140 mm (44.9 in)
Wheel base	1,320 mm (52 in)
Ground clearance	210 mm (8.3 in)
Weight	385 kg (845 lbs)
Fuel capacity
Fuel tank capacity	19.0 liters (5.0 US gal, 4.2 Imp. gal)

Engine

Engine
Engine model	Kohler K482
Engine type	4-stroke, L-head (side valve), two-cylinder
Displacement	781 cm³, (47.7 cu·in)
Bore and stroke	82.6 mm X 73.0 mm (3.25 in X 2.87 in)
Max. horsepower	18.2 PS (13.4 kW; 18.0 HP) at 3,600 rpm
Cooling system	Forced air
Lubricating system	Splash type
Fuel system	Carburetor
Starting system	Electirc starter
Valve clearance
Intake valve clearance:	0.20-0.25 mm (0.0079-0.0098 in)
Exhaust valve clearance:	0.43-0.48 mm (0.0169-0.0189 in)
Oil system
Lubrication system:	Splash type
Oil type:	API SF or SG
Recommended oil:	Summer: SAE 30W Winter: SAE 5W-20, 5W-30
Oil capacity:	3.0 L (3.17 US.qts, 2.64 Imp. qts)
Ignition system
Spark plug:	Champion RH10
Spark plug gap:	0.65 mm (0.0256 in)
Spark plug torque:	27 N·m (2.8 kg·m, 19.9 ft·lb)

Transmission and chassis

Chassis, steering and brakes
Chassis	4×2 2WD
Steering type	Manual or power (optional)
Brakes	Disc
Transmission
Transmission manufacturer or model	Eaton 12
Transmission type	Shaft-driven hydrostatic
Gears	Infinite forward and reverse
Speed	Forward: 12.9 kmh (8 mph) Reverse: 6.4 kmh (4 mph)
Transmission oil capacity	9.5 L (2.5 US. gal, 2.1 Imp. gal.)

Tires

Tires
Front tires	Lawn/turf: 5.70/5.00×8
Rear tires	Lawn/turf: 27×8.50-15

Rear Hitch

Three-Point Hitch
Category	0 (optional)
Control type	–
Lift capacity (at ends)	–

PTO (Power take-off shaft)

PTO
Middle PTO type	Independent
Middle PTO speed	–

Electrical system

Electrical system
Ground	Negative
Charging system	Alternator
Charging amps	30A
Battery	12V

Attachments

Bolens 48″ mid-mount mower deck with 3-blade and mechanical lift
Cutting width	1,210 mm (48 in)
Bolens 54″ mid-mount mower deck with 3-blade and mechanical lift
Cutting width	1,370 mm (54 in)
Bolens 54″ front-mount blade with mechanical lift
Cutting width	1,370 mm (54 in)
Bolens 48″ front-mount dual-stage snow blower and mechanical lift
Width	1,210 mm (48 in)

Author: Sergei Wers
About: Co-founder and CEO of a multi-brand auto repair shop (engine repair, chassis repair, body repair and painting) for over 15 years. I have been developing internet sites with technical specifications for more than seven years.

ATTENTION! Dear visitors, this is an informational database of technical specifications, we are not a parts supplier or a marketplace.

We try to use official documentation and verify the published data, but errors may occur. In addition, specifications of machinery and equipment may vary depending on markets and modifications. We do not recommend the use of this data for spare parts or repairs. Use official service manuals or parts catalogs for your product.

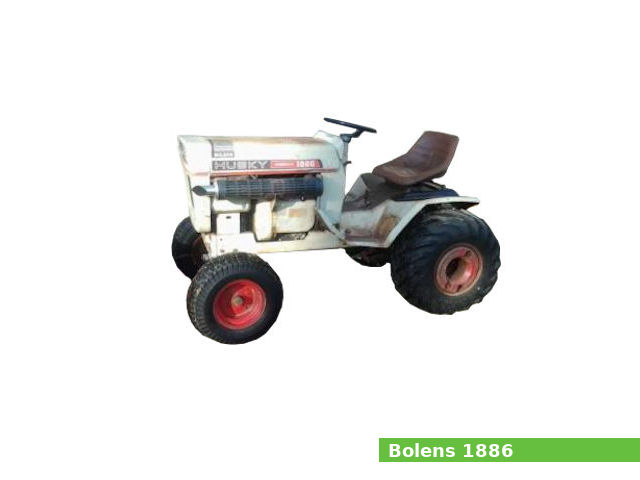

Bolens 1886
